| Material | Activated carbon granules |
| Frame | Galvanized steel |
| Permanent operating temperature | < 40 °C |
| Relative humidity | < 70 % |
Advantages
- Maximum adsorption of harmful gases and odors.
- Long-term mechanical filtration efficiency does not decrease throughout the filter's service life
- High filter quality with low air flow resistance.
Filtration

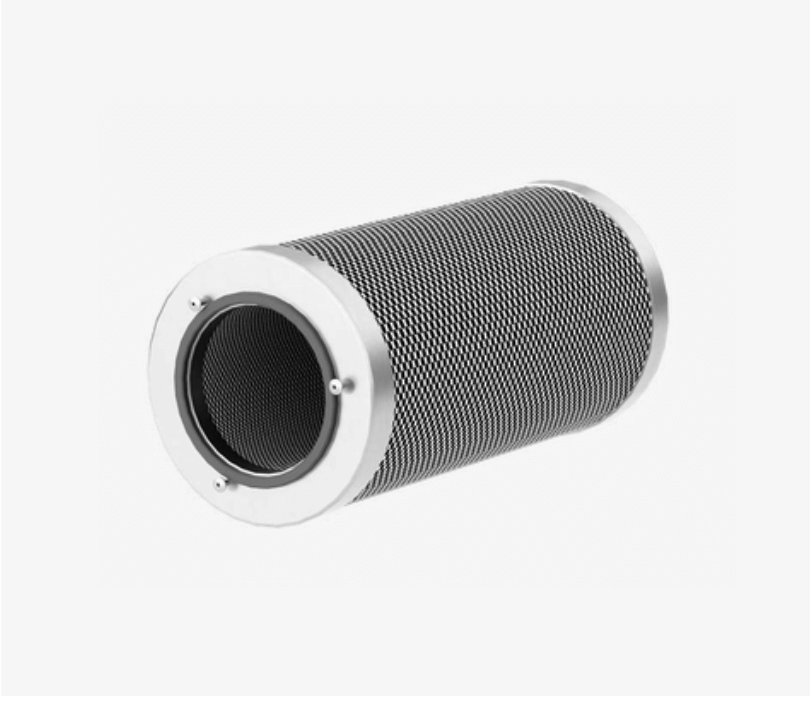

Activated carbon granules are an advanced cylindrical filtration material designed to ensure exceptional adsorption efficiency. These granules, which are made from high-quality carbon sources, are carefully activated. They form a highly porous structure that has a large surface area and is characterized by extremely efficient pollutant capture. These filters are ideal for air and water filtration for various applications. Activated carbon granules effectively remove pollutants, odors and volatile organic compounds (VOCs), ensuring a cleaner and safer environment. The cylindrical shape of the filters promotes optimal flow dynamics, allows for efficient filtration and reduces pressure drop.

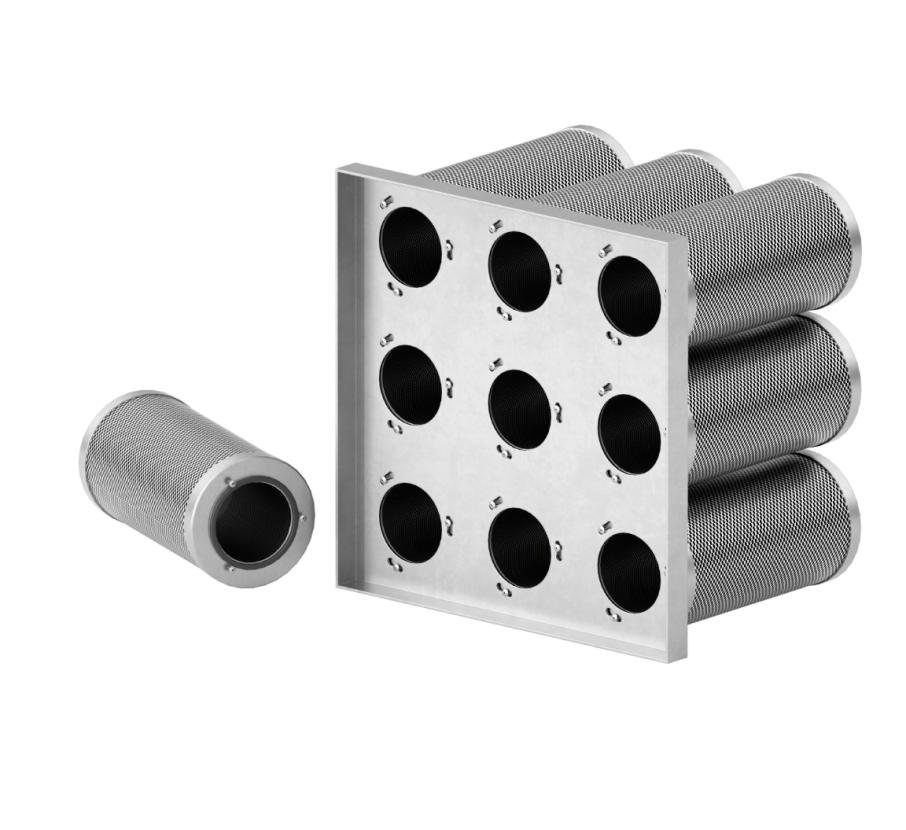

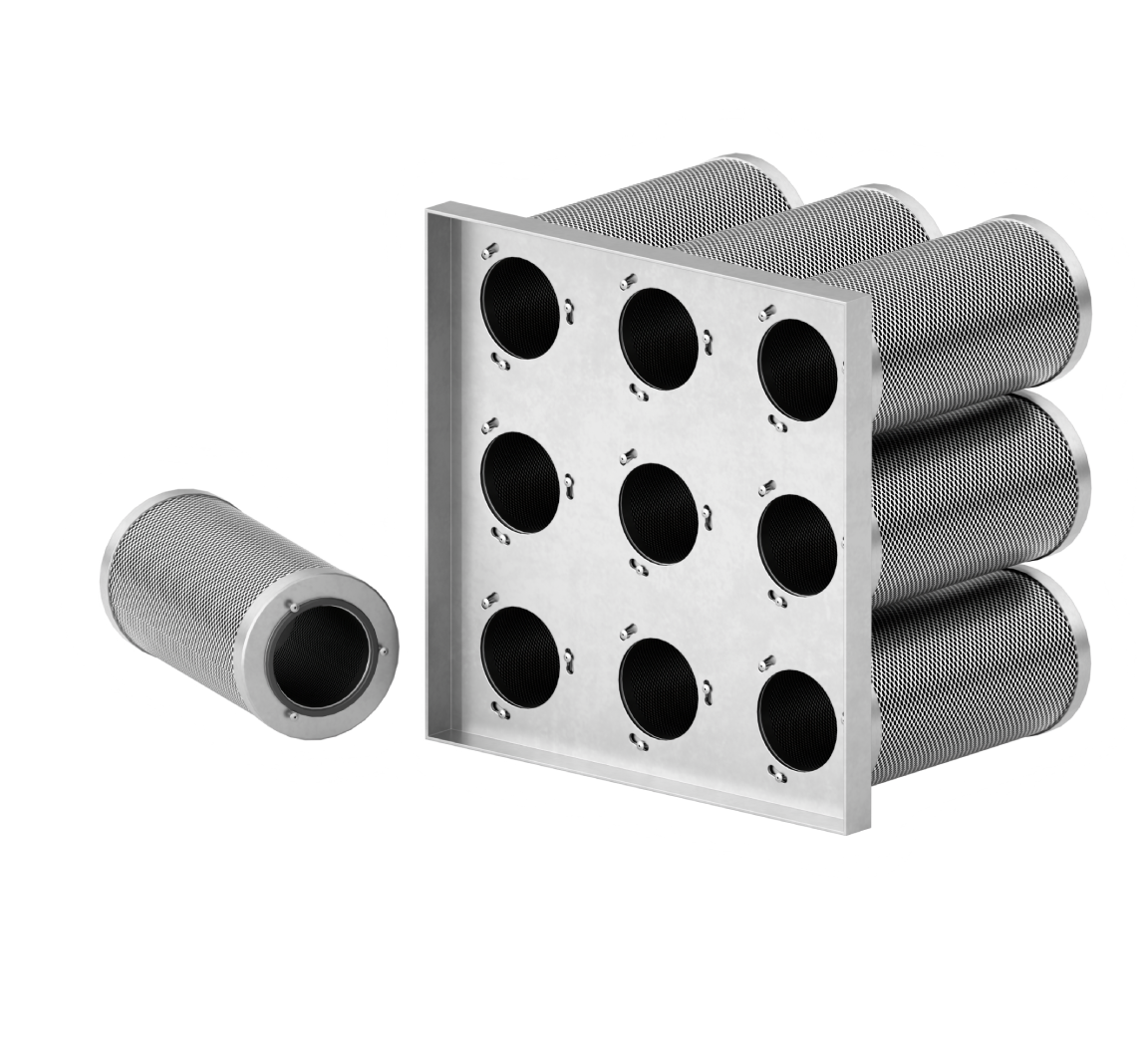

Other dimensions of cylindrical filters and frames are also available, depending on the technical requirements of the ventilation system.
|
Material |
Galvanized or |
Galvanized or |
Galvanized or |
|

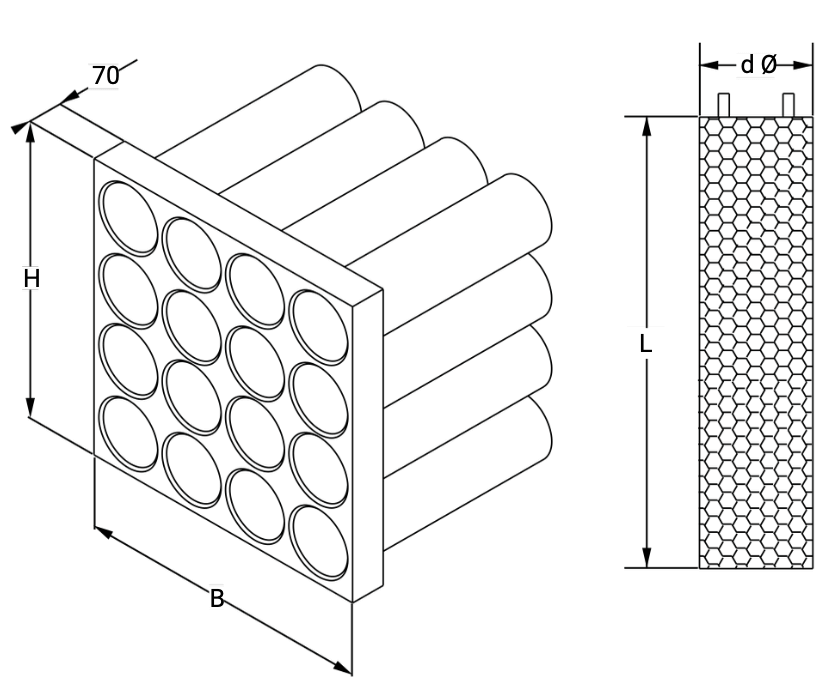

Size (diameter × height), mm |
145 × 250 |
145 × 450 |
145 × 600 |
|
Filter attachment |
Non-gas-tight |
Non-gas-tight |
Non-gas-tight |
|
Filter medium |
Activated carbon / |
Activated carbon / |
Activated carbon / |
|
Wall thickness, mm |
26 |
26 |
26 |
|
Filter media weight, kg |
1.1 |
2.1 | 3.0 |
|
Recommended air flow for 16 cylinders, m3/h |
1250 |
2500 |
3400 |
|
Contact time at recommended air flow |
0.1 sec |
0.1 sec |
0.1 sec |
