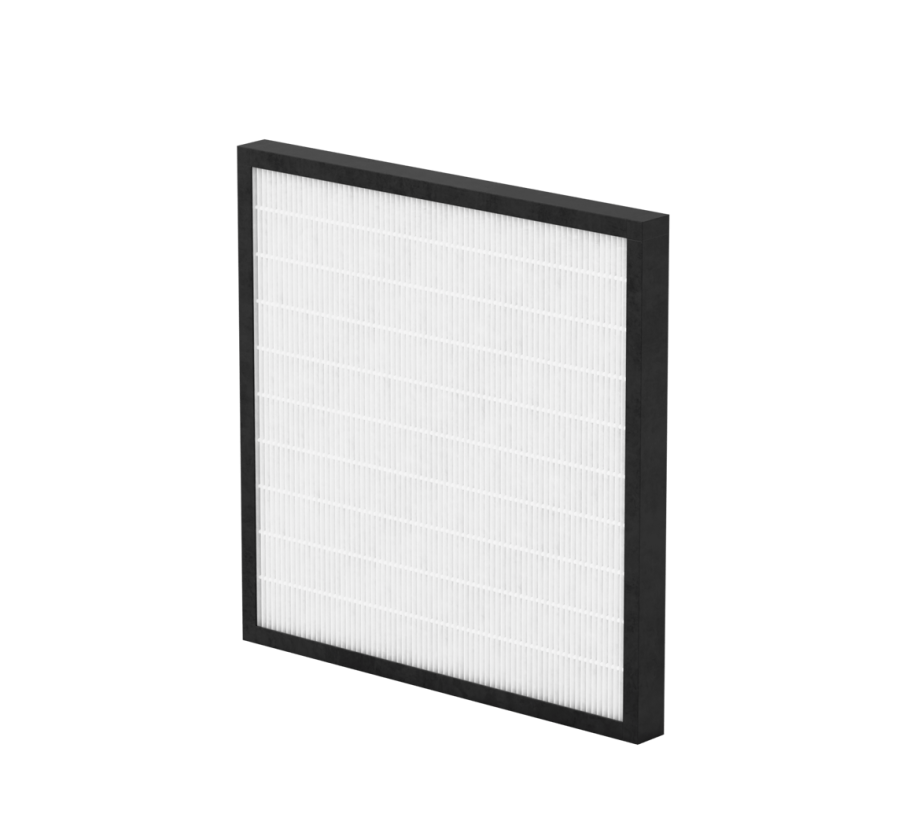

Minipleat Plastic

Home
Products
Compact filters
Minipleat Plastic

Filter class ISO 16890	From Coarse 80% to ePM1 80%
EN 779:2012 class (previous standard)	From G4 to F9
Material	Progressive synthetic or fiberglass
Frame	High-quality plastic
Permanent operating temperature	< 70°C
Relative humidity	100%
Recommended final pressure drop	A lower parameter must be selected: ePM10 / ePM2.5 / ePM1: Add 100 Pa to the pressure drop of the clean filter. 3x higher than the pressure drop of the clean filter. Coarse: Add 50 Pa to the pressure drop of the clean filter. Three times higher than the pressure drop of the clean filter.
Max. final pressure drop	200 Pa

Description
Technical information
Downloads

Compact filters are widely used in both residential and industrial ventilation systems, where the priority is the compact design of the air handling unit. By using pleated media technology, we achieve a large filtration area and rigidity in compact filters.

ADVANTAGES:

Large filtration area
Durable compact design
Easy replacement

FILTER MEDIA

Water-resistant progressive synthetic filter media are usually made from polyester or polypropylene fibers. These materials are water-resistant, making them suitable for use in humid environments.

INNOVATIVE FILTRATION SOLUTIONS

The modern manufacturing process and innovative materials make it possible to achieve low pressure drops, extended service life, and ensure mechanical resistance. Special adhesives are used to maintain separation between the filter pleats. These adhesives help maintain a consistent gap between the pleats, preventing them from touching during operation. This way, the pressure drop in the ventilation system is not increased.

INNOVATIVE MATERIALS

Moisture resistance and durability: helps maintain the filter‘s structure and performance in high humidity conditions, extending the filter‘s service life.

How to correctly measure compact filters?

Place the filter in the same position as shown in the picture.
Record the measurements in the following order (do not mix them up): B (width) × H (height) × C (depth) mm.

We also manufacture filters with custom dimensions.

Air filter characteristics

Filter class ISO 16890	EN779:2012	Material	Dimensions	Airflow (m3/h)	Pressure drop (Pa)
ePM1 80%	F9	Progressive synthetic	592x592x96	2900	124
ePM1 60%	F7		592x592x48	2000	48
ePM1 60%	F7		592x592x96	2900	77
ePM10 70%	M6		592x592x48	2000	58
ePM10 70%	M6		592x592x96	2900	73
ePM10 50%	M5		592x592x48	3000	53
ePM10 50%	M5		592x592x96	3400	60
Coarse 80%	G4		592x592x48	2000	24
Coarse 80%	G4		592x592x96	2900	50

Minipleat Plastic PDF
